Have you ever been frustrated by slow checkouts or scanning errors at your business? Choosing the right barcode scanner can make all the difference in speeding up operations and ensuring accuracy. When it comes to selecting the best option, the choice often boils down to 1D vs 2D barcode scanner. Which one fits your needs? Understanding the differences between these technologies can help you streamline processes, reduce errors, and improve efficiency. In this guide, we’ll explore their unique features, benefits, and use cases to help you make the smart choice for your business.
What Are Barcode Scanners?
A barcode scanner is a device that reads and decodes printed barcodes, converting the encoded pattern into usable data for your POS system, inventory software, or ERP platform. Whether you’re tracking stock levels, processing payments, verifying patient medication, or clearing customs, the right scanner eliminates manual entry errors and dramatically speeds up operations.
Barcode scanners work by projecting a light source, laser or LED onto the barcode, capturing the reflected pattern, and decoding it into data. That data is then transmitted to a connected device via USB, Bluetooth, or Wi-Fi.
How Barcode Scanners Work
Barcode scanners work by capturing the light reflected off the printed barcode. This reflection is converted into electrical signals, which are then decoded into usable data. Different types of barcode scanners use different technologies, such as laser scanning, imaging, or infrared sensors.
The Role of Barcode Scanners in Industries
Barcode scanners play a vital role in industries like retail, healthcare, and logistics:
- Retail and supermarkets- fast POS checkout and automated stock replenishment
- Warehousing and logistics – goods-in/out tracking, pick-and-pack, shipment verification
- Healthcare -patient ID wristbands, medication dispensing, lab sample tracking
- Hospitality and events- e-ticket validation, boarding passes, loyalty card scanning
- Government and compliance -UAE VAT e-invoice QR verification, customs clearance, product traceability
💡 Also read: What Is an Auto Document Feeder (ADF) and How Does It Work? — if your business also processes paper documents at volume, an ADF scanner is worth exploring alongside your barcode solution.

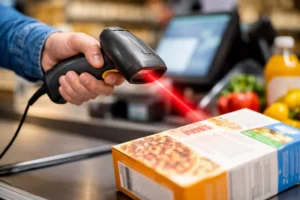

What Is a 1D Barcode Scanner?
A 1D barcode scanner also called a linear barcode scanner, reads traditional barcodes made up of parallel vertical lines and spaces of varying widths. These are the barcodes you see every day on supermarket products, shipping labels, and library books.
1D barcodes encode data in one dimension, only horizontally. They typically hold between 8 and 25 characters, primarily numeric, and must link to an external database to be meaningful. For example, the UPC code on a product is just a number, its price and description only exist in your inventory database.
How 1D scanners work
Most 1D scanners use a laser beam or a CCD (Charge-Coupled Device) sensor that sweeps horizontally across the barcode. The scanner needs to be within roughly 4 to 24 inches of the barcode and reasonably aligned to read it accurately.
Key Features of 1D Barcode Scanners:
- Scans barcodes horizontally.
- Use laser or CCD (Charge Coupled Device) technology to scan and decode linear barcodes
- Typically requires close proximity to the barcode.
- Best for environments with minimal data requirements.
Common 1D barcode types
- UPC-A / UPC-E — retail product labelling (global standard)
- EAN-13 / EAN-8 — international retail standard, widely used across the UAE and GCC
- Code 39 — industrial, government, and defence applications
- Code 128 — logistics, shipping labels, inventory management
- ITF-14 — outer carton and case-level barcodes in distribution
Pros of 1D Barcode Scanners:
- Lower cost — entry-level models are affordable and accessible for small businesses
- Simple to operate — minimal staff training needed
- Fast and reliable for clean, well-printed linear barcodes
- Very low maintenance and long product lifespan
- Wide compatibility with most POS, ERP, and inventory software
Cons of 1D Barcode Scanners:
- Cannot read QR codes, Data Matrix, or any 2D barcode format
- Very limited data capacity — typically 8 to 25 characters maximum
- Requires a live database connection to interpret the barcode’s meaning
- Struggles with damaged, faded, or poorly printed barcodes
Related: Can a Standard Barcode Scanner Read QR Codes? — already using a 1D scanner and wondering if it can handle QR codes? We answer this in full.

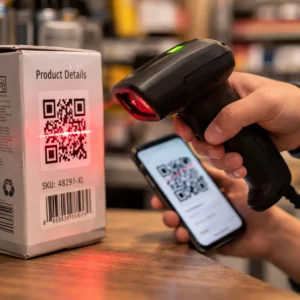

What Is a 2D Barcode Scanner?
A 2D barcode scanner also called an area imager or 2D imager, reads barcodes that encode data in two dimensions, both horizontally and vertically. This design allows them to store dramatically more information than 1D barcodes.
Unlike laser-based 1D scanners, a 2D imager captures a full image of the barcode using a camera sensor, similar to how a smartphone camera reads a QR code. This makes 2D scanners far more versatile: they read from any angle, at greater distances, from screens, and even from damaged or poorly printed codes.

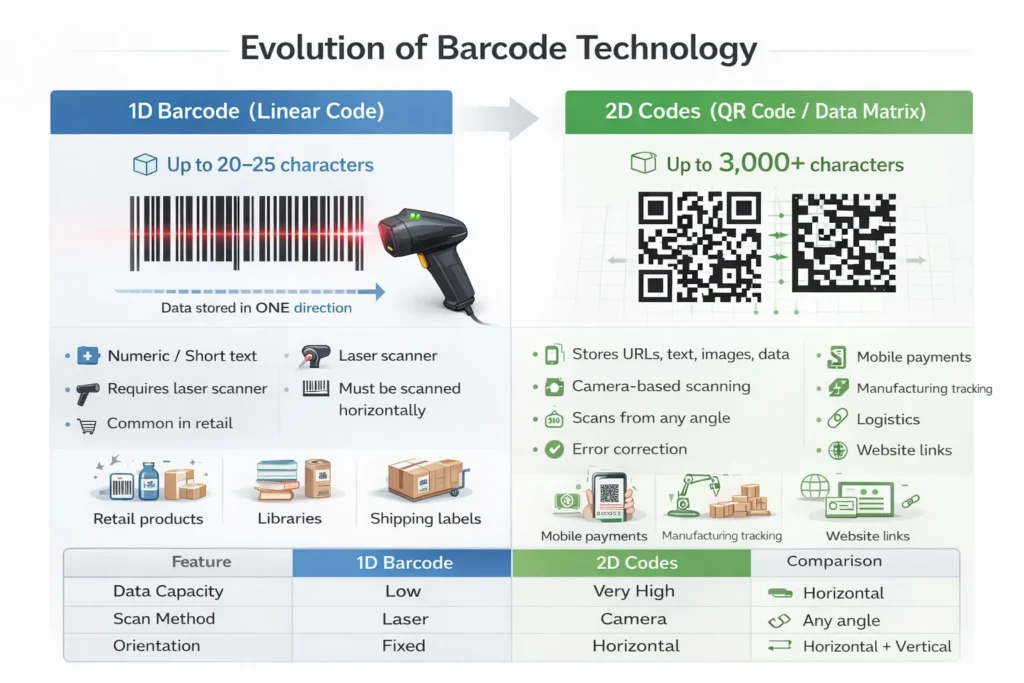

How much data can a 2D barcode hold?
The difference in data capacity is dramatic. A standard 1D barcode holds around 8–25 characters. A QR code, by contrast, can encode up to 4,296 alphanumeric characters or 7,089 numeric digits. A Data Matrix code can hold up to 2,335 alphanumeric characters. Critically, this data travels with the barcode itself, no external database connection is required to read it.
Key Features of 2D Barcode Scanners:
- Reads complex barcodes like QR codes and DataMatrix.
- 2D barcode scanners utilize imaging technology to capture the entire barcode at once
- Works from various angles and longer distances.
- Ideal for storing large amounts of data.
- Ability to scan more complex codes, including damaged or poorly printed barcodes.
Common 2D barcode types
- QR Code — mobile payments, marketing, product info, UAE VAT e-invoices, contact details
- Data Matrix — pharmaceutical packaging, electronics, small-part identification
- PDF417 — boarding passes, UAE driver’s licences, government-issued IDs
- Aztec — transport ticketing, event passes, loyalty programmes
- GS1 DataBar — fresh produce and variable-weight items at retail POS
Pros of 2D Barcode Scanners:
- Reads a wide variety of codes: Can scan both 1D and 2D barcodes, including QR codes, DataMatrix, and PDF417.
- Higher data capacity: Capable of encoding significantly more data, including text, URLs, and multimedia.
- Omnidirectional scanning: No need to align the scanner perfectly with the barcode, making scanning faster and more user-friendly.
- Reads damaged or poorly printed barcodes: Improved scanning accuracy even with faded or damaged codes.
- Versatile use cases: Ideal for mobile payments, product tracking, ID verification, and healthcare applications.
Cons of 2D Barcode Scanners:
- Higher cost: More expensive than 1D barcode scanners due to advanced technology.
- Increased complexity: May require additional training for employees unfamiliar with 2D scanning technology.
- Maintenance: Generally more complex to maintain compared to simpler 1D scanners.
Difference between 1D and 2D Barcode scanner
| Feature | 1D Barcode Scanners | 2D Barcode Scanners |
|---|---|---|
| Data Storage | Limited to linear barcodes, storing fewer data points. | Can store extensive data such as text, images, URLs, and more. |
| Scanning Technology | Uses laser or CCD technology to scan barcodes linearly. | Uses imaging technology to capture the entire barcode at once, offering more flexibility. |
| Versatility | Best for reading simple, traditional barcodes. | Ideal for reading both linear and matrix-based barcodes, including QR codes and complex 2D symbols. |
| Speed and Accuracy | Moderate speed and accuracy, suitable for clear and well-printed codes. | Generally faster and more accurate, especially for reading damaged or poorly printed codes. |
| Cost | Less expensive, making them ideal for budget-conscious businesses. | Higher cost, but offers a wider range of capabilities. |
Barcode Scanner Form Factors
Choosing the right physical form factor matters as much as choosing between 1D and 2D. The same imager technology is available in several hardware formats, the right one depends on your work environment.
Gun / pistol-grip handheld
The most common type. The operator holds and points the scanner at barcodes. Available in wired (USB) and wireless (Bluetooth/Wi-Fi) versions. Suitable for most retail, warehouse, and office settings.
Ring scanner (wearable)
Worn on the finger, keeping both hands free. Popular in fast-paced warehouse and order-picking environments where speed and ergonomics matter. Reduces repetitive strain in high-volume scanning operations.
Countertop / presentation scanner
Fixed on a counter, the operator or customer passes the item over the scanning window. Standard at supermarket checkouts and pharmacy dispensaries. Most countertop models today are 2D imagers.
Fixed / conveyor-mounted scanner
Permanently installed at a fixed position for automated scanning on production lines, conveyor belts, or automated warehouses. Industrial-grade, high-speed units.
Mobile computer with integrated scanner
A rugged Android or Windows handheld device with a built-in barcode scanner. Used in logistics, field service, and large warehouses where workers need both scanning and data-entry capability in a single device. Common in UAE distribution centres and freight operations.
Which Barcode Scanner Should You Choose?
The particular requirements of your company will determine which barcode scanner is best for you.
Choose a 1D barcode scanner if…
- You only scan traditional product barcodes — UPC, EAN, Code 128, Code 39
- Your environment is primarily a supermarket, general retail store, or simple warehouse
- Budget is a primary constraint and QR code capability is not required
- Your existing POS or ERP system is optimised for linear barcodes
- All your barcodes are well-printed and in good condition
Choose a 2D barcode scanner if…
- You scan or plan to scan QR codes — for UAE VAT e-invoices, mobile payments, or marketing
- You work in healthcare, logistics, e-commerce, hospitality, or events
- You need to scan boarding passes, loyalty cards, or e-tickets from phone screens
- You want one device that handles all current and future barcode formats
- You’re preparing for GS1 Sunrise 2027, when global retail POS transitions to 2D
- You operate in challenging conditions — low light, damaged labels, or high-speed lines
Not sure which model suits your Dubai or UAE operation? Browse our range of product to select the right scanner for your specific environment and budget.
Conclusion
The choice between a 1D and 2D barcode scanner comes down to what you scan, where you work, and where your business is heading.
If your needs are straightforward — retail product barcodes, basic stock tracking, a tight budget, a reliable 1D laser scanner will serve you well at a fraction of the cost.
If you need more — QR code scanning, UAE VAT invoice verification, healthcare compliance, screen scanning, or future-proofing for GS1 2027, a 2D imager scanner is the clear and lasting investment.
At Fliponn, we supply and support a full range of barcode scanners, document scanners, and business hardware across Dubai and the wider UAE. Our team is based in Bur Dubai and can help you choose, install, and maintain the right scanning solution for your operation.
Frequently Asked Questions
Can a 2D barcode scanner read 1D barcodes?
Yes. All 2D barcode scanners are backward compatible with every standard 1D barcode format, including UPC, EAN, Code 39, Code 128, and ITF-14. If you invest in a 2D scanner, you never need to worry about 1D compatibility.
Can a 1D barcode scanner read QR codes?
No. A standard 1D laser or CCD barcode scanner cannot read QR codes or any other 2D barcode format. If your business needs to scan QR codes for VAT invoices, mobile payments, or any other purpose, you need a 2D imager scanner.
Is a QR code 1D or 2D?
A QR code is 2D. It encodes data both horizontally and vertically, allowing it to store thousands of characters — far more than a standard 1D barcode. Reading a QR code requires a 2D imager scanner, not a 1D laser scanner.
What is the scanning range of a 2D barcode scanner?
Most handheld 2D imager scanners read comfortably from close range up to around 3 feet (approximately 90 cm). Industrial or long-range 2D scanner models can operate from several metres away, making them suitable for warehouse shelf scanning and automated conveyor lines.
Which barcode scanner is best for retail in Dubai?
For a standard supermarket or retail store in Dubai using EAN or UPC product barcodes, a 1D scanner is cost-effective and entirely sufficient. However, if you process digital loyalty cards, mobile payment QR codes, or are planning ahead for GS1 Sunrise 2027 compliance, a 2D imager is the smarter long-term investment.
Do I need a 2D scanner for UAE VAT invoices?
Yes. UAE FTA-compliant tax invoices include a QR code that contains invoice and seller data. Only a 2D barcode scanner can read this QR code. A 1D laser scanner cannot decode it.
