Want to monitor your security cameras on a bigger screen? Real-time surveillance is possible by connecting a CCTV camera to a TV, eliminating the need for a computer or other monitors. Whether you’re monitoring a business or setting up a home security system, this tutorial will show you how to connect your CCTV camera to a TV, either directly or through a DVR.
We’ll go over every technique in detail, from conventional wired connections like HDMI, RCA, and BNC to contemporary wireless possibilities with Smart TVs and WiFi-enabled cameras. To guarantee a seamless setup, make sure your camera and TV are compatible before you start.
Understanding Your Equipment

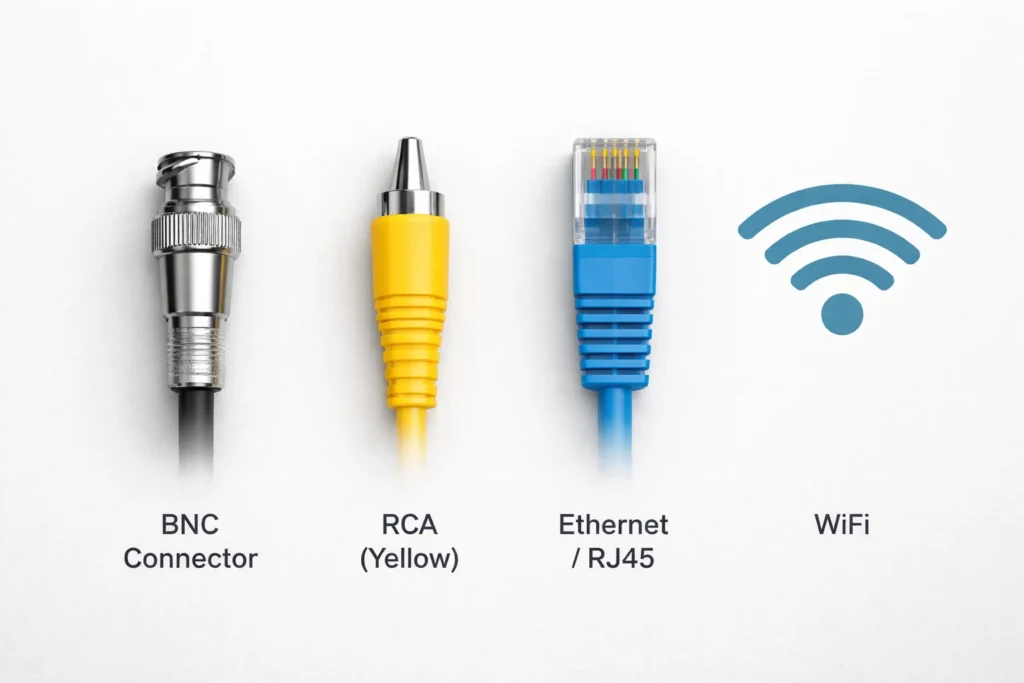

Before connecting your CCTV camera to a TV, it’s important to understand the different types of cameras and connections available:
Analog CCTV Cameras: Traditional cameras using BNC connectors and coaxial cables IP Cameras: Network-based cameras that connect via Ethernet or WiFi Wireless Cameras: WiFi-enabled cameras for cable-free installation
For guidance on choosing between different camera types, check out our comparison guide: IP Camera vs Analog CCTV.
Different Methods to Connect a CCTV Camera to TV
1. How to Connect a CCTV Camera to TV with DVR
A Digital Video Recorder (DVR) acts as an intermediary between the CCTV camera and the TV, providing storage and playback options. Here’s how you can connect a CCTV camera to a TV using a DVR:
- Connect the Camera to the DVR: Use a BNC cable to connect the CCTV camera’s video output to the DVR’s input.
- Link the DVR to the TV: Use an HDMI or VGA cable to connect the DVR’s output to the TV’s corresponding input.
- Power On All Devices: Turn on the CCTV camera, DVR, and TV.
- Select the Right Input Source: On your TV, switch to the appropriate HDMI or VGA input to view the CCTV footage.
2. How to Connect a CCTV Camera to TV Without a DVR
A CCTV camera may occasionally be best connected to a TV without a DVR. The technique varies according to whether the camera is IP-based or analog.
Using RCA Cables
Most analog CCTV cameras have an RCA video output. Follow these steps to connect your camera directly to a TV:
- Identify the RCA Output: Locate the yellow RCA video output on the CCTV camera.
- Connect the Camera to the TV: Use an RCA cable to link the camera’s output to the TV’s RCA input.
- Power On the Devices: Switch on the camera and TV.
- Select the Correct Input: Choose the appropriate AV input on the TV to view the footage.

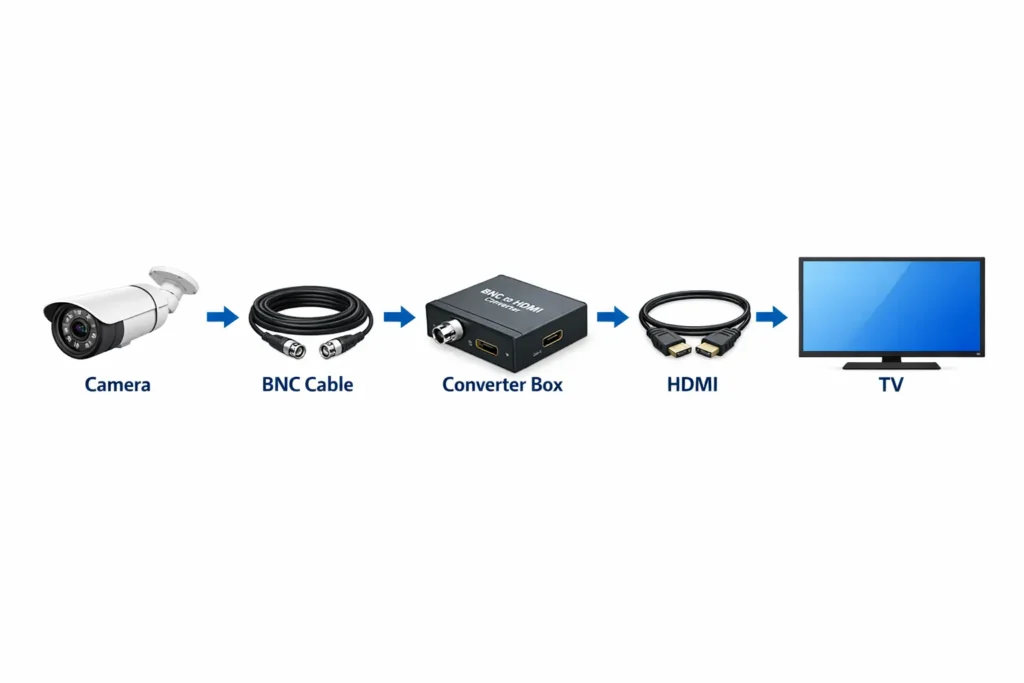

Using a BNC to HDMI Converter
Some CCTV cameras use BNC connectors, which require a BNC-to-HDMI adapter to connect to modern TVs. Here’s how to set it up:
- Attach the Camera to the Converter: Attach the camera’s output to the converter’s input using a BNC cable.
- Connect the Converter to the TV: Connect the converter’s output to the TV using an HDMI cable.
- Turn the devices on: Make sure that the TV, camera, and converter are all turned on.
- Choose the Proper HDMI Input: On your TV, navigate to the appropriate HDMI input to view the footage.
Using a Wireless CCTV Camera
If you have a wireless CCTV camera, you can connect it to a Smart TV via WiFi or an app. Here’s how:
- Ensure the Camera Supports WiFi Connectivity: Check if your camera has built-in WiFi and Smart TV compatibility.
- Install the Camera’s App on Your Smart TV: Download and install the camera’s official app from the TV’s app store.
- Pair the Camera with the Smart TV: Follow the on-screen instructions to connect your camera.
- View the Live Feed: Once connected, you can view the CCTV footage directly on your TV.
How to Connect CCTV Camera to Smart TV?
Smart TVs offer additional features that make connecting a CCTV camera easier. Unlike traditional TVs, Smart TVs can work with IP cameras, allowing for real-time viewing and even cloud storage options. Here are two common methods:
- Connecting via an IP Camera App:
- On your Smart TV, install the app for the camera maker.
- By entering the app’s IP address or scanning a QR code, you can pair the camera with it.
- Use the app to view live feeds instantly.

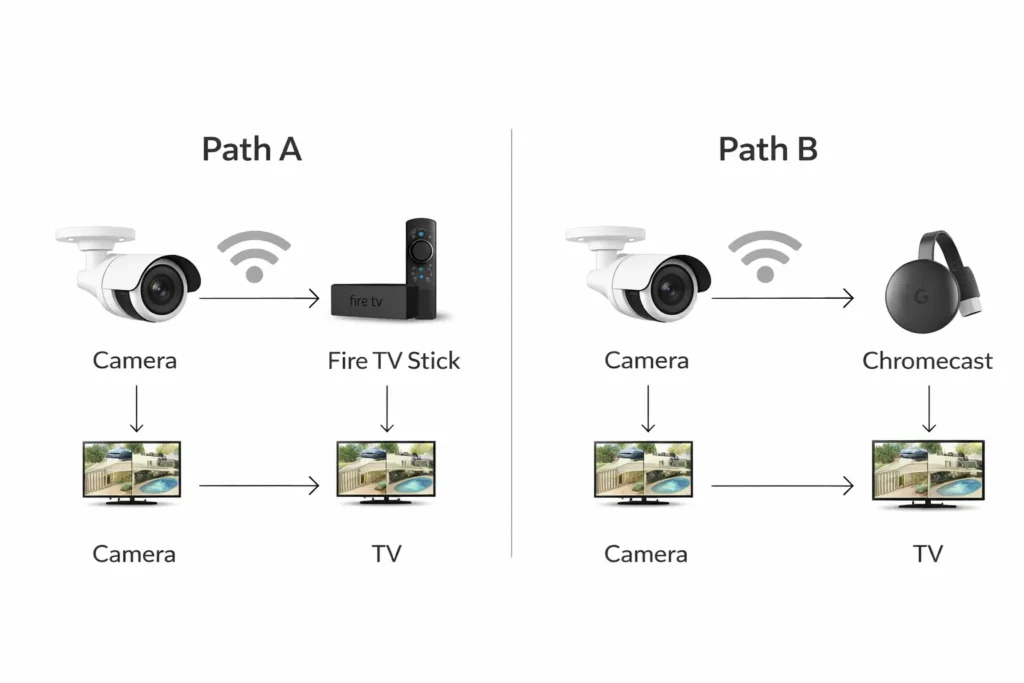

- Using a Streaming Device (Chromecast, Firestick, etc.):
- If the camera app is not supported by your Smart TV, you can use streaming devices such as Firestick or Chromecast.
- Cast the feed from a smartphone or tablet to your TV by installing the camera app on the streaming device.
- To make access even simpler, several gadgets also support voice control through Alexa or Google Assistant. Need help connecting your camera to WiFi? Read our detailed guide: How to Connect CCTV Camera to WiFi Router.
How to Connect CCTV Camera to TV Wirelessly?
CCTV cameras that support WiFi can instantly feed video to a TV for a fully wireless arrangement. Here’s how:
- Verify that WiFi is compatible: Verify that wireless transmission is supported by your CCTV camera.
- Link the camera to the network in your house: Connect the camera to your WiFi network using the app.
- Turn on streaming on your television: To view the live feed, use a streaming device or a Smart TV app.
- Watch Video on the TV: To view the live feed, go to your TV’s app or streaming service.
CCTV cameras with WiFi capabilities provide a convenient and adaptable alternative to running cables for monitoring security footage. These cameras can transmit video to PCs, smartphones, and Smart TVs over WiFi. While many Smart TVs provide real-time viewing through IP camera apps, some need streaming devices like Firestick or Chromecast. Additionally, some cameras can be controlled hands-free by voice assistants like Alexa and Google Assistant. Wireless CCTV systems make remote access simple and setup clutter-free.
Common Issues and Troubleshooting Tips
- No Video Signal Detected on TV:
- Check all cable connections.
- Ensure the camera and TV are powered on.
- Select the correct input source on the TV.
- Poor Video Quality or Flickering:
- Use high-quality cables and adapters.
- Check for electromagnetic interference from nearby devices.
- Adapter/Converter Not Working Properly:
- Ensure the converter is compatible with your camera and TV.
- Try using a different HDMI or BNC cable.
- Sound Issues (For Cameras with Microphones):
- Ensure the TV’s volume is up.
- Use an RCA to HDMI adapter with audio support if necessary.
Choosing the Right Camera System
When setting up your surveillance system, selecting the right equipment is crucial. Browse our range of security products including cameras, DVRs, and accessories suitable for every setup.
Maintenance and Support
Regular maintenance ensures your CCTV system operates reliably. For ongoing support and repairs, our technology services include:
- System troubleshooting
- Camera repairs and replacements
- Software updates
- Performance optimization
Final Thoughts
Connecting a CCTV camera to a TV is straightforward with the right equipment and method. Whether you choose a wired DVR setup, direct connection, or wireless Smart TV integration, each approach offers unique advantages for your security needs. For professional assistance with CCTV installation, configuration, or troubleshooting, contact our security experts at Fliponn Tech. We provide comprehensive security system solutions tailored to homes and businesses across Dubai.
